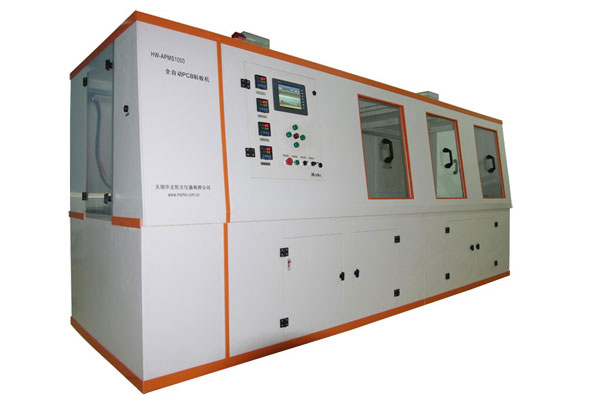

Automatic PCB Making System HW-APMS1000
Application and features:
HW-APMS1000 is an equipment with integrated features of developing , etching,hole through and nickel plating which can conveniently and quickly make many PCB at one time.
The machine for the shortcomings of lab PCB making rough process, poor effect for PCB making, complex operation and cumbersome for making process, design totally in accordance with actual PCB making process, increasing the necessary aided process, so as to ensure the success rate of PCB making effect and hole through will be reach hundred percent. Automatic working method controlled by PLC, solve the cumbersome of operation procedure completely .
In meeting of the special requirement of lab PCB making, the machine will improve the PCB making and through-hole technology and related chemical liquid strongly, ensure the effect of PCB making, can reach the brand new requirement of environmental protection, non-toxic and non-polluting and so on.
The machine is setting up with manual operation and automation, transparent appearance, conducive to observation, small volume and handy operation. It is particularly suitable for students of tertiary institutions to making batch PCB in the PCB making electronic technology training , research institutes and R & D institutions laboratory small batch PCB making.
The tank adopting acidproof alkali material, the constant temperature device using titanium heating tube, high precision temperature sensor. The tank working time and the temperature can be preset
Technical Features:
(1)Adopting PLC touch screen control, with an open system program, convenient to adjust, a high degree automation, with the functions of fully automatic, semi-automatic, and emergency operation;
(2)It is an equipment with integrated features of developing , etching, hole through and nickel plating which can conveniently and quickly make the PCB on one machine.
(3)Adopting single arm small gantry lane , which can do multi-plate, with the quick speed to produce the products.
(4) Liquid tank with the functions of air inflating, swinging, heating , and it will improve the work efficiency of various aspects and the hole through quality of small aperture board.
(5) Using the environmental protection liquids, which ensures the working environment clean, and suitable for meeting the demand of Laboratory PCB making.
(6) The traffic drive is selected the brand-name brake reducer motor and stainless steel, working smooth and reliable.
(7) The machine is made of PP material , acidproof alkali , high temperature resistance, long lifespan.
Technical Parameters:
Power Supply: 380V/50HZ
Overall dimension（L×M×H）: 3550mm×1100mm×1720mm
Maximum working area（cm）: 300mm×300mm
Minimum line width/ distance of developing and etching: 8mil
Temperature Control Accuracy : +/-1℃
Minimum through hole aperture: 0.3mm
Automatic PCB Making Procedure:
Fehlin Printing -- Sensitive Plate Exposing --- Developing --- Washing --- Etching --- Washing --- Film stripping --- Washing --- Drying --- Painting anti-plate film --- Drying --- Drilling --- Hole cleaning --- Washing --- Activating --- Washing --- Washing --- Speed up --- Washing --- Film stripping --- Washing --- Copper plating --- Washing --- Drying
|
