Rapid PCB Prototyping

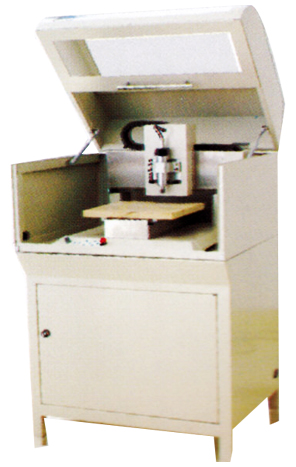

Rapid PCB Prototyping Type:HW-3232plus

Technical parameters
Processed side :Single/Double side
Maximum working area（cm） : 32×32
Minimum line width（mil）: 4
Minimum linear distance（mil）: 6
Working speed（m/min）: 7.2
Resolution: 0.003125mm
Spindle speed （r/min）: 0-60000 Stepless adjustable
Spindle power（w）: 95
Circular guideway : Linear guideway
Transmission mode : Import ball bearing screw
Drilling aperture（mm）: 0.4-3.175
Drilling rate (strokes/min): 100
Control Mode : ARM
Communication mode : RS-232/USB
Power Supply: AC220V 50HZ
Compatible format: PROTEL、DXP、POWERPCB/AUTOCAD
Minimum memory setup（MB）: 256
External measurement: 750mm(L)×660mm（W）×1200mm（H）
Weight: 156KG
Consumed Power: 220VA

Standard Configuration
Mainframe 1set
Casing: 1
Cabinet : 1
Engraving tool :2 boxes
Drill Bit :2 boxes
Copper-clad Board: a certain number
Recycle Etching System:1 set
Developer:3 packages
Nickel Plating Reagent: 3 packages
Treating Fluid: 1set
