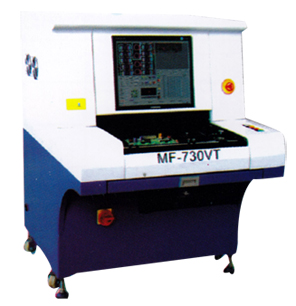

Technical parameters
1. PCB Applicable
Size: 20×20mm-350×450mm
Thickness: 0.5-3mm;
Curvature : 2.0mm
2. Test Items
After feflow soldering
Defective Part: shortage, excess component, migration, polarity reversed, wrong component
3.Vision System
Camera system: Colorful figure CCD
Lighting System: Colorful circular tri-color LED light source
Resolution: 25um
Inspection Speed: <300ms/FOV
Inspection Principle: Color operations, color picker, gray-scale computing, image comparison
4. Mechanical System
X/Y driving system: AC servo motor+ close-knit ball screw
Installation way: Automatic single-sided fixture
Positioning Accuracy: 8um
Maximum Travelling Speed: 500mm/s
Orbit Adjustment Method: Manually
5.Software Systems
Operating Interface: WindowXP+ graphical interface
Interface Language: Chinese/English
Test Results Output: base plate ID, base plate name, component name, defect name , defect picture
|
