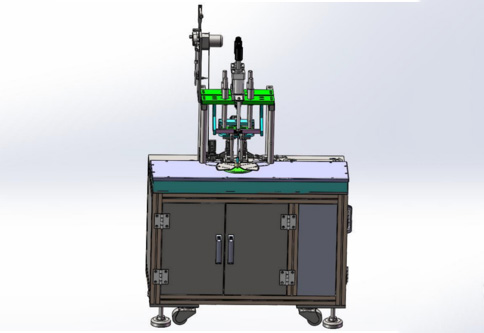

| KN95 Semi-automatic Ear loop Welding Machine | | |
Introduction
The equipment is manually placed into the positioning mold, the foot pedal switch is started, the rotating disk is turned to the ultrasonic ear loop welding place, the equipment starts to cut the ear loop at a fixed length, the air cylinder clamps the ear loop and sends it to the ultrasonic vibrator, presses down the welding, after the welding, the rotation continues to weld the other side, after the binding, the air cylinder lifts up to replace the new material and restarts.
This equipment is used with hw-kn95 body mask machine. The quantity configuration requirements are based on the maximum speed of hw-kn95 film printer of 80-100 pieces / min, and 4-5 sets are required. This equipment can also be purchased separately for use, and the positioning mold shall be made according to kn95 respirator size (because the size of each respirator is different).
The size of equipment ear loop is adjustable, the rotation angle of welding ear loop is adjustable, and the spacing of ear loop is adjustable.
The equipment is equipped with ear loop detection function, and automatically stops after ear loop failure.
Model
|
HW-KN95BE
|
Weight
|
about 200KG
|

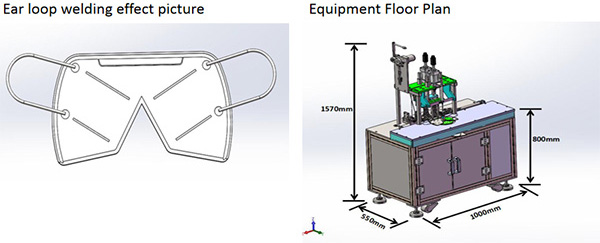

Size
|
1000mm( L) X550mm( W) X1570mm( H)
|
Workingpower
|
220VAC，50HZ
|
Working Power
|
1.5KW
|
Working air pressure
|
Pressure：0.6Mpa ,Flow rate：200L/min
|
Production Efficiency
|
15 pieces /Min （ Final efficiency depends on manual feeding speed ）
|
Operating Worker
|
1 person
|
